Plugging Those Leaks
It’s been 5 years since modern C++ arrived on the scene in the form of the C++11 standard. Prior to the arrival, C++ was notorious for memory leaks and segmentation faults due to the lack of standardized smart pointers (although third party library and home grown smart pointers have existed for decades). Dangerous, naked news and deletes could be found sprinkled across large code bases everywhere – hidden bombs waiting to explode at any moment during runtime.

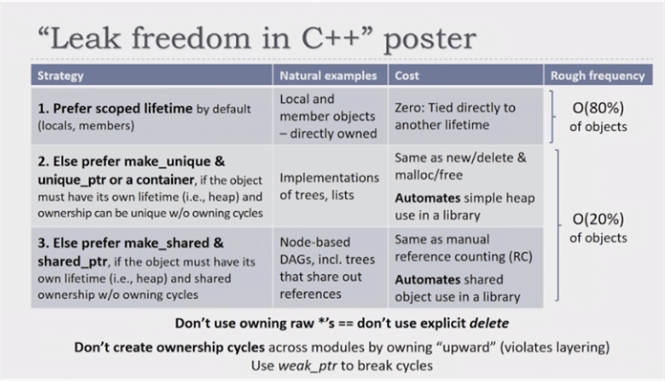

I don’t know how many over-confident C++ programmers are still using the old new/delete pattern in new code bases, but if your team is one of them please consider hoisting this terrific poster on the walls of your office:
ISO WG-21 C++ committee convener Herb Sutter, a tireless and passionate C++ advocate for decades, presented this poster in his CppCon 2016 talk “Leak Freedom In C++: By Default“. Go watch it now.
Time To Get Moving!
Prior to C++11, for every user-defined type we wrote in C++03, all standards-conforming C++ compilers gave us:
- a “free” copy constructor
- a “free” copy assignment operator
- a “free” default constructor
- a “free” destructor
The caveat is that we only got them for free if we didn’t manually override the compiler and write them ourselves. And unless we defined reference or pointer members inside of our type, we didn’t have to manually write them.
Starting from C++11 on, we not only get those operations for free for our user-defined types, we also get these turbo-boosters:
- a “free” move constructor
- a “free” move assignment operator
In addition, all of the C++ standard library containers have been “move enabled“.
When I first learned how move semantics worked and why this new core language feature dramatically improved program performance over copying, I started wondering about user-defined types that wrapped move-enabled, standard library types. For example, check out this simple user-defined Msg structure that encapsulates a move-enabled std::vector.
Logic would dictate that since I get “move” operations from the compiler for free with the Msg type as written, if I manually “moved” a Msg object in some application code, the compiler would “move” the vDoubs member under the covers along with it – for free.
Until now, I didn’t test out that deduction because I heard my bruh Herb Sutter say in a video talk that deep moves came for free with user-defined types as long as each class member in the hierarchical composition is also move-enabled. However, in a more recent video, I saw an excellent C++ teacher explicitly write a move constructor for a class similar to the Msg struct above:
D’oh! So now I was confused – and determined to figure out was was going on. Here is the program that I wrote to not only verify that manually written “move” operations are not required for the Msg struct, but to also measure the performance difference between moving and copying:
First, the program built cleanly as expected because the compiler provided the free “move” operations for the Msg struct. Second, the following, 5-run, output results proved that the compiler did indeed perform the deep, under the covers, “move” that my man Herb promised it would do. If the deep move wasn’t executed, there would have been no noticeable difference in performance between the move and copy operations.
From the eye-popping performance difference shown in the results, we should conclude that it’s time to start replacing copy operations in our code with “move” operations wherever it makes sense. The only thing to watch out for when moving objects from one place to another is that in the scope of the code that performs the move, the internal state of the moved-from object is not needed or used by the code following the move. The following code snippet, which prints out 0, highlights this behavior.
Not Just Expert Friendly
Check out this snippet from one of Bjarne Stroustrup’s CppCon keynote slides:
Now take a glance at one of Herb Sutter’s CppCon talk slides:
Bjarne’s talk was titled “Make Simple Tasks Simple” and Herb’s talk was tiled “Back To The Basics!: Modern C++ Style“. Since I abhor unessential complexity, I absolutely love the fact that these two dedicated gentlemen are spearheading the effort to evolve C++ in two directions simultaneously: increasing both expert-friendliness AND novice-friendliness.
By counterbalancing the introduction of advanced features like variadic templates and forwarding references with simpler features like range-for loops, nullptr, and brace-initialization, I think Bjarne and Herb (and perhaps other community members I don’t know about) are marvelously succeeding at the monumental task of herding cats. To understand what I mean, take a look at another one of Herb’s slides:
Do you see that teeny tiny dot at the end of the big arrow down on the lower right edge of the circle? Well, I don’t come anywhere close to qualifying for membership with the cats inside that dot… and I’d speculate that most advanced feature proposals and idiom ideas, whether they are understandable/teachable to mere mortals or not, originate from the really smart cats within that dot.
By gently but doggedly communicating the need for lowering the barriers to entry for potentially new C++ users while still navigating the language forward into unchartered waters, I’m grateful to Herb and Bjarne. Because of these men, the ISO C++ committee actually works – and it is indeed amazing for any committee to “work“.
C++1y Automatic Type Deduction

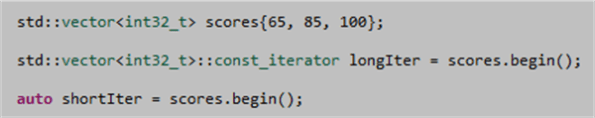

The addition, err, redefinition of the auto keyword in C++11 was a great move to reduce code verbosity during the definition of local variables:
In addition to this convenient usage, employing auto in conjunction with the new (and initially weird) function-trailing-return-type syntax is useful for defining function templates that manipulate multiple parameterized types (see the third entry in the list of function definitions below).

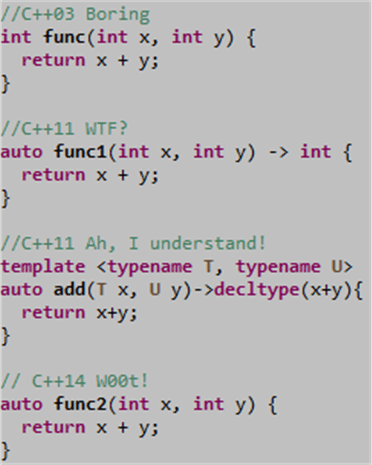

In the upcoming C++14 standard, auto will also become useful for defining normal, run-of-the-mill, non-template functions. As the fourth entry below illustrates, we’ll be able to use auto in function definitions without having to use the funky function-trailing-return-type syntax (see the useless, but valid, second entry in the list).
For a more in depth treatment of C++11’s automatic type deduction capability, check out Herb Sutter’s masterful post on the new AAA (Almost Always Auto) idiom.
No Runtime Overhead

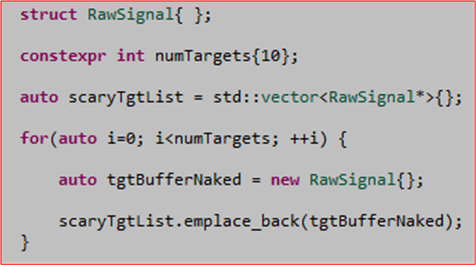

Since I have the privilege of using C++11/14 on my current project, I’ve been using the new language idioms as fast as I can discover and learn them. For example, instead of writing risky, exception-unsafe, naked “new“, code like this:

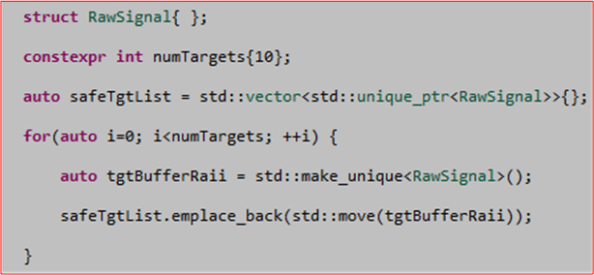

I’ve been writing code like this instead:
By using std::unique_ptr instead of a naked pointer, I don’t have to veer away from the local code I’m writing to write matching delete statements in destructors or in catch() exception clauses to prevent inadvertent memory leaks.
I could’ve used a std::shared_ptr (which can be copied instead of “moved“) in place of the std::unique_ptr, but std::shared_ptr is required to maintain a fatter internal state in the form of strong and weak owner counters. Unless I really need shared ownership of a dynamically allocated object, which I haven’t so far, I stick to the slimmer and more performant std::unique_ptr.
When I first wrote the std::unique_ptr code above, I was concerned that using the std::move() function to transfer encapsulated memory ownership into the safeTgtList vector would add some runtime overhead to the code (relative to the C++98/03 style of simply copying the naked pointer into the scaryTgtList vector). It is, after all, a function, so I thought it must insert some code into my own code.

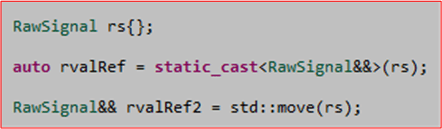

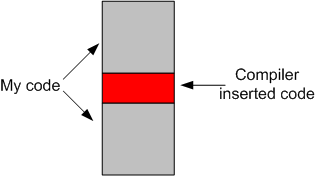

However, after digging a little deeper into my concern, I discovered (via Stroustrup, Sutter, and Meyers) that std::move() adds zero runtime overhead to the code. Its use is equivalent to performing a static_cast on its argument – which is evaluated at compile time.
As Scott Meyers stated at GoingNative13, std::move() doesn’t really move anything. It simply prepares for a subsequent real move by casting its argument from an lvalue to an rvalue – which is required for movement of an object’s innards. In the previous code, the move is actually performed within the std::vector::emplace_back() function.
Quoting Scott Meyers: “think of std::move() as an rvalue_cast“. I’m not sure why the ISO C++ committee didn’t define a new rvalue_cast keyword instead of std::move() to drive home the point that no runtime overhead is imposed, but I’d speculate that the issue was debated. Perhaps they thought rvalue_cast was too technical a term for most users?
Update 10/25/13

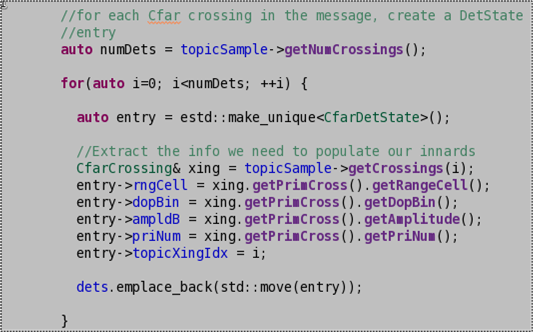

As I said early in the post, the code example is “like” the code I’ve been writing. The real code that triggered this post is as shown here:
Since each “entry” CfarDetState object must be uniquely intialized form it’s associated CfarCrossing object, I can’t simply insert estd::make_unique<CfarDetState>() into the emplace_back() function. All of the members of each “entry” must be initialized first. Regardless of whether I use emplace_back() or push_back(), std::move(entry) must be used as the argument of the chosen function.
The Biggest Cheerleader
Herb Sutter is by far the biggest cheerleader for the C++ programming language – even more so than the language’s soft spoken creator, Bjarne Stroustrup. Herb speaks with such enthusiasm and optimism that it’s infectious.
In his talk at the recently concluded GoingNative2013 C++ conference, Herb presented this slide to convey the structure of the ISO C++ Working Group 21 (WG21):
On the left, we have the language core and language evolution working groups. On the right, we have the standard library working group.
But wait! That was the organizational structure as of 18 months ago. As of now, we have this decomposition:
As you can see, there’s a lot of volunteer effort being applied to the evolution of the language – especially in the domain of libraries. In fact, most of the core language features on the left side exist to support the development of the upcoming libraries on the right.
In addition to the forthcoming minor 2014 release of C++, which adds a handful of new features and fixes some bugs/omissions from C++11, the next major release is slated for 2017. Of course, we won’t get all of the features and libraries enumerated on the slide, but the future looks bright for C++.
The biggest challenge for Herb et al will be to ensure the conceptual integrity of the language as a whole remains intact in spite of the ambitious growth plan. The faster the growth, the higher the chance of the wheels falling off the bus.
“The entire system also must have conceptual integrity, and that requires a system architect to design it all, from the top down.” – Fred Brooks
“Who advocates … for the product itself—its conceptual integrity, its efficiency, its economy, its robustness? Often, no one.” – Fred Brooks
I’m not a fan of committees in general, but in this specific case I’m confident that Herb, Bjarne, and their fellow WG21 friends can pull it off. I think they did a great job on C++11 and I think they’ll perform just as admirably in hatching future C++ releases.
The Bogus SE/SE Rule

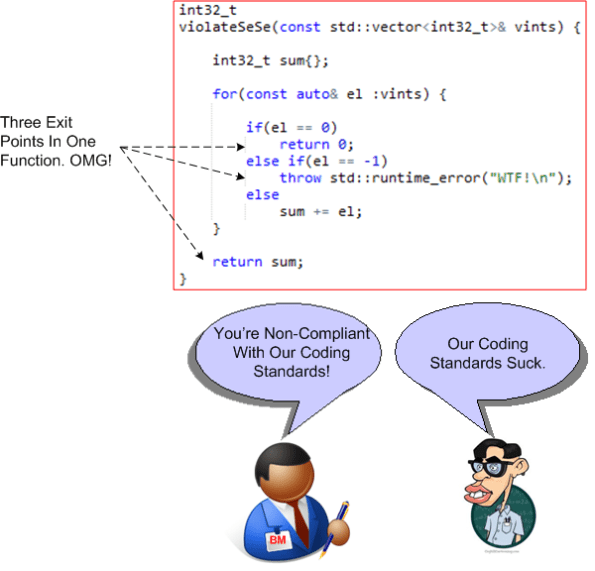

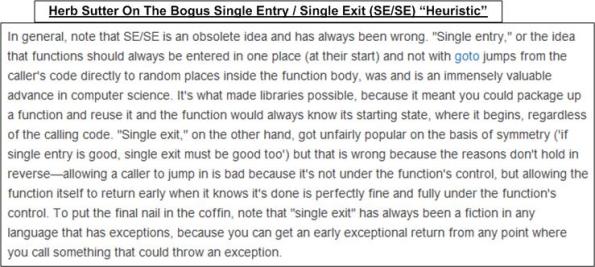

Relatively recently, I participated in a debate with a peer regarding the sacredness of the Single Entry / Single Exit (SE/SE) “rule” of programming. I wish I had this eloquent Herb Sutter treatise on hand when it occurred:
Woot! Now that I’ve stashed the case against SE/SE nazi “enforcement” on this blawg, I’m armed and ready to confront the next brainwashed purist on the matter.
make_unique

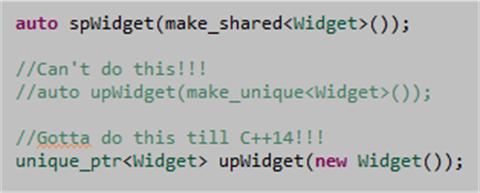

On my current project, we’re joyfully using C++11 to write our computationally-dense target processing software. We’ve found that std::shared_ptr and std::unique_ptr are extremely useful classes for avoiding dreaded memory leaks. However, I find it mildly irritating that there is no std::make_unique to complement std::make_shared. It’s great that std::make_unique will be included in the C++14 standard, but whenever we use a std::unique_ptr we gotta include a fugly “new” in our C++11 code until then:

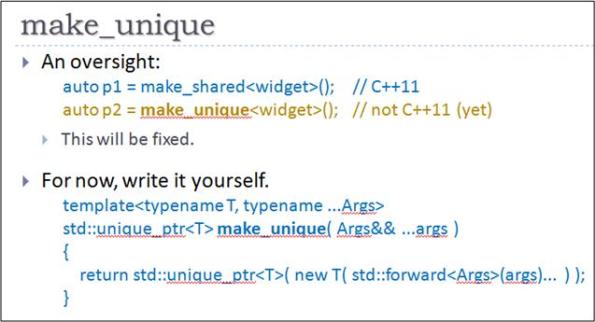

But wait! I stumbled across this helpful Herb Sutter slide:
A variadic function template that uses perfect forwarding. It’s outta my league, but….. Whoo Hoo! I’m gonna add this sucker to our platform library and start using it ASAP.
The Renaissance That Wasn’t
In the thoughtful and well-written article, “The Rise and Fall of Languages in 2012”, Andrew Binstock rightly noted that the C++ renaissance predicted by C++ ISO committee chairman Herb Sutter did not materialize last year. Even though C++ butters my bread and I’m a huge Sutter fan, I have to agree with Mr. Binstock’s assessment:
In fact, I can find no evidence that C++ is breaking into new niches at a pace that will affect the language’s overall numbers. For that to happen, it would need to emerge as a primary language in one of today’s busiest sectors: mobile, or the cloud, or big data. Time will tell, but I feel comfortable projecting that C++ will continue to grow in its traditional niches and will advance at the same rate as those niches grow.
Nevertheless, if you buy into Herb’s prognostication that power consumption and computing efficiency (performance per watt) will overtake programmer productivity as the largest business cost drag in the future, then the C++ renaissance may still be forthcoming. Getting 2X the battery life out of a mobile gadget or a .5X reduction in the cost to run a data center may be the economic ticket that triggers a deeper C++ penetration into what Andrew says are today’s busiest sectors: mobile, the cloud, and big data. However, if the C++ renaissance does occur, it won’t take hold overnight, let alone over the one year that has passed since the C++11 standard was hatched.
It’s tough to make predictions, especially about the future – Yogi Berra
A Glimpse Into C++11PL4
At Microsoft’s Build 2012 conference, ISO C++ chairman Herb Sutter introduced the new isocpp.org web site. On the site, you can download a draft version of Chapter 2 from Bjarne Stroustrup‘s upcoming “The C++ Programming Language, 4th Edition“. As I read the chapter and took “the tour“, I noted the new C++11 features that Bjarne used in his graceful narrative. Here they are:
auto, intializer lists, range-for loops, constexpr, enum class, nullptr, static_assert.
Since I’m a big Stroustrup and C++ fan, I just wanted to pass along this tidbit of info to the C++ programmers that happen to stumble upon this blog.
