Regardless Of Agile Or Waterfall

April 9, 2014 2 comments

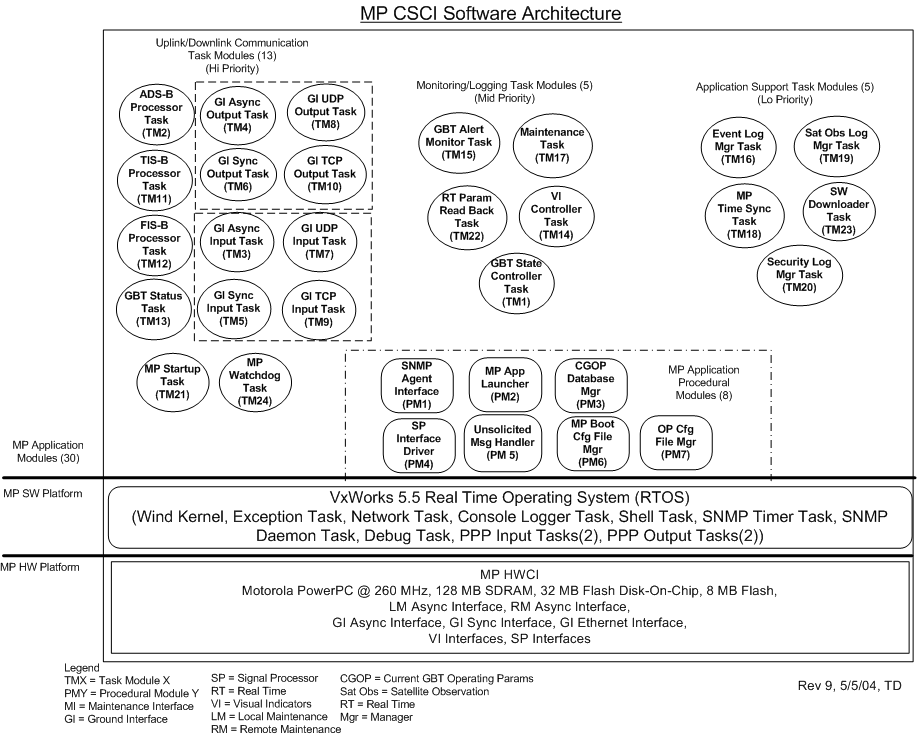

The figure below depicts an architectural view of a real-time embedded sub-system that I and a team of 8 others built and delivered 10 (freakin!) years ago. At revision number 9, the diagram ended up being the final “as-built” model of the 20,000+ lines-of-code system. Since the software was written in C and, thus, not object-oriented, I chose not to use UML to capture the design at the time. Doing so would have introduced an impedance mismatch and a large intellectual gap of misunderstanding between the procedural C code base and the OO design artifacts. I used structured analysis and functional decomposition to concoct the design and I employed “pseudoData Flow Diagrams (DFD) instead.

At the beginning of this “waterfall” project, I created revision 0 of the diagram as the first “build-to” snapshot. Of course, as learning accrued and the system evolved throughout development, I diligently kept the diagram updated and synchronized with the code base in true PAYGO fashion.

MP_Top_Level_SW_Design

As you can see from the picture, the system of 30+ asynchronous application tasks ran under the tutelage of the industrial-strength VxWorks Real Time Operating System (RTOS). Asynchronous inter-task communication was performed via message passing through a series of lock-protected queues. The embedded physical board was powered by a Motorola PowerPC CPU (remember  those dinosaurs?). The board housed a myriad of serial and ethernet interface ports for communication to other external sub-systems.

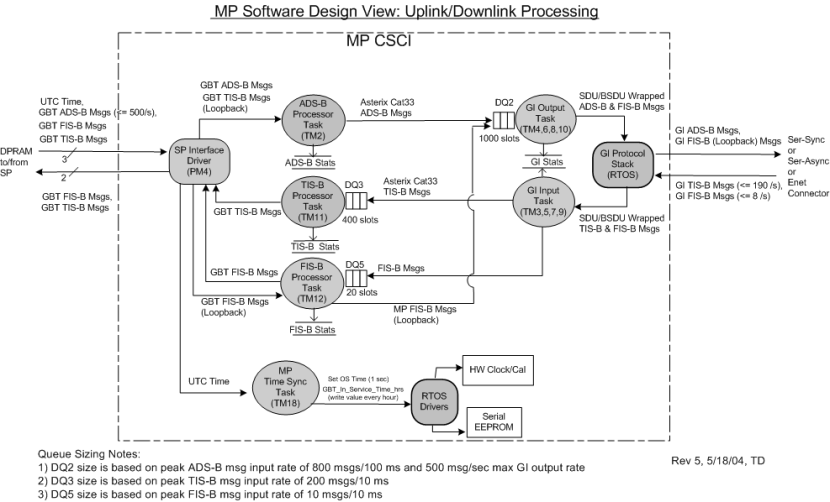

The above diagram was not the sole artifact that I used to record the design. It was simply the highest level, catch-all, overview of the system. I also developed a complementary set of lower level functional diagrams; each of which captured a sliced view of an end-to-end strand of critical functionality. One of these diagrams, the “Uplink/Downlink Processing View“, is shown below. Note that the final “as-built” diagram settled out as revision number 5.

UpDownLink

The purpose of this post was simply to give you a taste of how I typically design and evolve a non-trivial software-intensive system that I can’t entirely keep in my head. I use the same PAYGO process for all of my efforts regardless of whether the project is being managed as an agile or waterfall endeavor. To me, project process is way over-emphasized and overblown. “Business Value” creation ultimately distills down to architecture, design, coding, and testing at all levels of abstraction.

Formal Review Chain

On big, multi-year, multi-million dollar software development projects, a series of  “high-ceremony” formal reviews are almost always required to be held by contract. The figure below shows the typical, sequential, waterfall review lineup for a behemoth project.

The entity below each high ceremony review milestone is “supposedly” the big star of the review. For example, at SDR, the structure and behavior of the system in terms of the set of CSCIs that comprise the “whole” are “supposedly” reviewed and approved by the attendees (most of whom are there for R&R and social schmoozing). It’s been empirically proven that the ratio of those “involved” to those “responsible” at reviews in big projects is typically 5 to 1 and the ratio of those who understand the technical content to those who don’t is 1 to 10. Hasn’t that been the case in your experience?

The figure below shows a more focused view of the growth in system artifacts as the project supposedly progresses forward in the fantasy world of behemoth waterfall disasters, uh, I mean projects. Of course, in psychedelic waterfall-land, the artifacts of any given stage are rigorously traceable back to those that were “designed” in the previous stage. Hasn’t that been the case in your experience?

In big waterfall projects that are planned and executed according to the standard waterfall framework outlined in this post, the outcome of each dog-and-pony review is always deemed a great success by both the contractee and contractor. Backs are patted, high fives are exchanged, and congratulatory e-mails are broadcast across the land. Hasn’t that been the case in your experience?
