Acting In C++

May 21, 2015 6 comments

Because they’re a perfect fit for mega-core processors and they’re safer and more enjoyable to program than raw, multi-threaded, systems, I’ve been a fan of Actor-based concurrent systems ever since I experimented with Erlang and Akka (via its Java API). Thus, as a C++ programmer, I was excited to discover the “C++ Actor Framework” (CAF). Like the Akka toolkit/runtime, the CAF is based on the design of the longest living, proven, production-ready, pragmatic, actor-based, language that I know of – the venerable Erlang programming language.

Curious to check out the CAF, I downloaded, compiled, and installed the framework source code with nary a problem (on CentOS 7.0, GCC 4.8.2). I then built and ran the sample “Hello World” program presented in the user manual:


As you can see, the CAF depends on the use one of my favorite C++11 features – lambda functions – to implement actor behavior.

The logic in main() uses the CAF spawn() function to create two concurrently running, message-exchanging (messages of type std::string), actors named “mirror” and “hello_world“. During the spawning of the “hello_world” actor, the main() logic passes it a handle (via const actor&) to the previously created “mirror” actor so that “hello_world” can asynchronously communicate with “mirror” via message-passing. Then, much like the parent thread in a multi-threaded program “join()“s the threads it creates to wait for the threads to complete their work, the main() thread of control uses the CAF await_all_actors_done() function to do the same for the two actors it spawns.

When I ran the program as a local C++ application in the Eclipse IDE, here is the output that appeared in the console window:

CAF mirror

The figure below visually illustrates the exchange of messages between the program’s actors during runtime. Upon being created, the “hello_world” actor sends a text message (via sync_send()) containing “Hello World” as its payload to the previously spawned “mirror” actor. The “hello_world” actor then immediately chains the then() function to the call to synchronously await for the response message it expects back from the “mirror” actor. Note that a lambda function that will receive and print the response message string to the console (via the framework’s thread-safe aout object) is passed as an argument into the then() function.

CAF HW actors

Looking at the code for the “mirror” actor, we can deduce that when the framework spawns an instance of it, the framework gives the actor a handle to itself and the actor returns the behavior (again, in the form of a lambda function) that it wants the framework to invoke each time a message is sent to the actor. The “mirror” actor behavior: prints the received message to the console, tells the framework that it wants to terminate itself (via the call to quit()), and returns a mirrored translation of the input message to the framework for passage back to the sending actor (in this case, the “hello_world” actor).

Note that the application contains no explicit code for threads, tasks, mutexes, locks, atomics, condition variables, promises, futures, or thread-safe containers to futz with. The CAF framework hides all the underlying synchronization and message passing minutiae under the abstractions it provides so that the programmer can concentrate on the application domain functionality. Great stuff!

I modified the code slightly so that the application actors exchange user-defined message types instead of std::strings.

req-resp CAF

Here is the modified code:

struct ReqMessage {
  int32_t anInt32_t;
  double aDouble;
  string aString;

struct RespMessage {
  enum class AckNack{ACK, NACK};
  AckNack response;

void printMsg(event_based_actor* self, const ReqMessage& msg) {
  aout(self) << "anInt32_t = " << msg.anInt32_t << endl
             << "aDouble = " << msg.aDouble << endl
             << "aString = " << msg.aString << endl
             << endl;

void fillReqMessage(ReqMessage& msg) {
  msg.aDouble = 55.5;
  msg.anInt32_t = 22;
  msg.aString = "Bulldozer00 Rocks!";

behavior responder(event_based_actor* self) {
  // return the (initial) actor behavior
  return {
  // a handler for messages of type ReqMessage
  // and replies with a RespMessage
  [=](const ReqMessage& msg) -> RespMessage {
    // prints the content of ReqMessage via aout
    // (thread-safe cout wrapper)
    printMsg(self, msg);
    // terminates this actor *after* the return statement
    // ('become' a quitter, otherwise loops forever)
    // reply with an "ACK"
    return RespMessage{RespMessage::AckNack::ACK};

void requester(event_based_actor* self, const actor& responder) {
  // create & send a ReqMessage to our buddy ...
  ReqMessage req{};
  self->sync_send(responder, req).then(
  // ... wait for a response ...
  [=](const RespMessage& resp) {
    // ... and print it
    RespMessage::AckNack payload{resp.response};
    string txt =
      (payload == RespMessage::AckNack::ACK) ? "ACK" : "NACK";
    aout(self) << txt << endl;

int main() {
  // create a new actor that calls 'responder()'
  auto responder_actor = spawn(responder);
  // create another actor that calls 'requester(responder_actor)';
  spawn(requester, responder_actor);
  // wait until all other actors we have spawned are done
  // run cleanup code before exiting main

And here is the Eclipse console output:
req-resp CAF output

Categories: C++, C++11 Tags: , , ,

Scaling Up And Out

January 8, 2015 2 comments

Ever since I discovered the venerable Erlang programming language and the great cast of characters (especially Joe Armstrong) behind its creation, I’ve been chomping at the bit to use it on a real, rent-paying, project. That hasn’t happened, but the next best thing has. I’m currently in the beginning stage of a project that will be using “Akka” to implement a web-based radar system gateway.

Akka Logo

Akka is an Erlang-inspired toolkit and runtime system for the JVM that elegantly supports the design and development of highly concurrent and distributed applications. It’s written in Scala, but it has both Scala and Java language bindings.

Akka Def

Jonas Boner, the creator of Akka, was blown away by the beauty of Erlang and its ability to support “nine nines” of availability – as realized in a commercial Ericsson telecom product. At first, he tried to get clients and customers to start using Erlang. But because Erlang has alien, Prologue-based syntax, and its own special VM/development infrastructure, it was a tough sell. Thus, he became determined to bring”Erlangness” to the JVM to lower the barriers to entry. Jonas seems to be succeeding in his crusade.

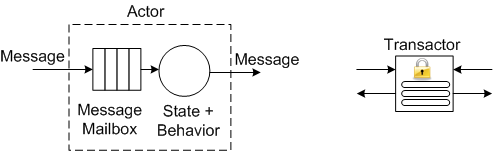

At the simplest level of description, an Akka-based application is comprised of actors running under the control of an overarching Akka runtime system container. An actor is an autonomous, reactive entity that contains state, behavior, and an input mailbox from which it consumes asynchronously arriving messages. An actor communicates with its parents/siblings by issuing immutable, fire-and-forget (or asynchronous request-and-remember), messages to them. The only way to get inside the “head” of an actor is to send messages to it. There are no backdoors that allow other actors to muck with the inner state of an actor during runtime. Like people, actors can be influenced, but not explicitly coerced or corrupted, by others. However, also like people, actors can be terminated for errant behavior by their supervisors. đŸ™‚

For applications that absolutely require some sort of shared state between actors, Akka provides transactors (and agents). A transactor is an implementation of software transactional memory that serializes access to shared memory without the programmer having to deal with tedious, error-prone, mutexes and locks. In essence, the Akka runtime unshackles programmers from manually handling the frustrating minutiae (deadlocks, race conditions (Heisenbugs), memory corruption, scalability bottlenecks, resource contention) associated with concurrent programming. Akka allows programmers to work at a much more pleasant, higher level of abstraction than the traditional, bare bones, threads/locks model. You spend more time solving domain-level problems than battling with the language/library implementation constraints.

Akka System

Actor Transactor

You design an Akka based system by, dare I say, exercising some upfront design brain muscle:

  • decomposing and allocating application functionality to actors,
  • allocating data to inter-actor messages and transactors,
  • wiring the actors together to structure your concurrent system as a network of cooperating automatons.

The Akka runtime supervises the application by operating unobtrusively in the background:

  • mapping actors to OS threads and hardware cores,
  • activating an actor for each message that appears in its mailbox,
  • handling actor failures,
  • realizing the message passing mechanisms.

Gee, I wonder if the agile TDD and the “no upfront anything” practices mix well with concurrent, distributed system design. Silly me. Of course they do. Like all things agile, they’re universally applicable in all contexts. (Damn, I thought I’d make it through this whole post without dissing the dogmatic agile priesthood, but I failed yet again.)

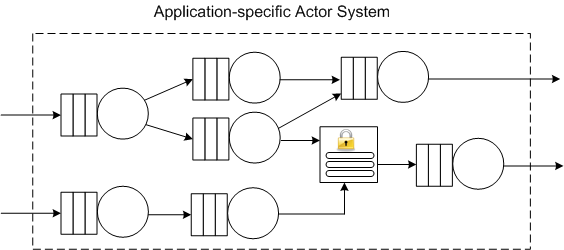

Akka concurrent example

Akka not only makes it easy to scale up on a multi-core processor, Akka makes it simple to scale out and distribute (if needed) your concurrent design amongst multiple computing nodes via a URL-based addressing scheme.

Akka distributed example

There is much more deliciousness to Akka than I can gush about in this post (most notably, actor supervision trees, futures, routers, message dispatchers, etc), but you can dive deeper into Akka (or Erlang) if I’ve raised the hairs on the back of your geeky little neck. The online Akka API documentation is superb. I also have access to the following three Akka books via my safaribooksonline account:

Akka Books

Since C++ is my favorite programming language, I pray that the ISO C++ committee adds Erlang-Akka like abstractions and libraries to the standard soon. I know that proposals for software transactional memory and improved support for asynchronous tasking and futures are being worked on as we speak, but I don’t know if they’ll be polished enough to add to the 2017 standard. Hurry up guys :).

Cpp Akka

Categories: C++, technical Tags: , ,
